| Brand Name : | Xi'an Lvneng |
| Model Number : | 13x Molecular Sieve Desiccant |
| Certification : | ISO9001:2008 |
| Price : | Negotiable |
| Supply Ability : | 50 Tons/ per Month |
| Delivery Time : | 3-15 work days |

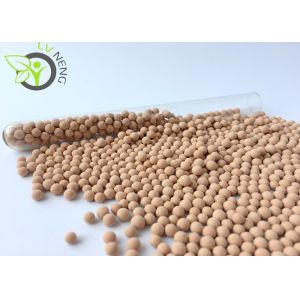

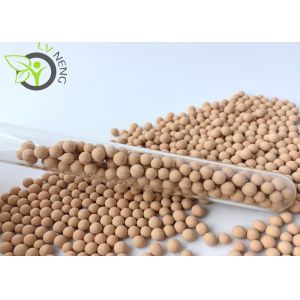

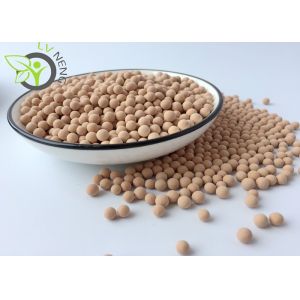

13X Molecular Sieve High Quality, Gas, Chemical, Petrol, Desiccant
Introduction
Molecular Sieve 13X is the sodium form of the type X crystal and has a much larger pore opening than
the type A crystals. It will adsorb molecules with a kinetic
diameter of less than 9 Angstrom (0.9 nm)
and exclude those larger.
It also has the highest theoretical capacity of the common
adsorbents and very good mass transfer rates.
It can remove impurities too large to fit into a type A crystal and
is commonly used to separate nitrogen
from oxygen.
Technical Parameter
| Molecular Sieve 13X Typical Physical Properties | ||||
| Items | Unit | 8*12 Mesh | 4*6 Mesh | |
| Bead Size | mm | 1.6-2.5 | 3.0-5.0 | |
| Bulk Density | g/ml ≥ | 0.68-0.85 | 0.65-0.80 | |
| Equilibrium Water Capacity @ 25℃ | wt% ≥ | 24.0-27.0 | 24.0-27.0 | |
| Equilibrium Carbon Dioxide Capacity | wt% ≥ | 18 | 18 | |
| Heat of Adsorption | BTU/lb of H2O | 1800 | 1800 | |
| Crush Strength | Point Contact | N ≥ | 30-80 | 80-130 |
| Variation Coefficient | - | 0.3 | 0.3 | |
| Attrition Rate | wt% ≤ | 0.1 | 0.1 | |
| Size Qualification | % ≥ | 97 | 97 | |
| Package Moisture | wt% ≤ | 1.5 | 1.5 | |
| The interval value of the indexes above are on the basis of the different grade of Molecular Sieve 13X | ||||
Application
a) Separation of enriched oxygen from the air.
b) Catalyst protection, removal of oxygenates from hydrocarbons
(olefin streams).
c) Production of bulk oxygen in PSA units.
d) Removal of CO2 and moisture from the air (air pre-purification) and
other gases.
e) Removal of R-SH and H2S from hydrocarbon liquid streams (LPG,
butane etc.)
f) Removal of n-chained compositions from aromatics.
FAQ
1.Q: Could we send a free sample for reference?
A: Yes, of course. Don't be shy, go ahead asking for a sample :)
2.Q: What about the price and MOQ?
A: We promise the price we offered is the most competitive with top
quality! we accept both large and small quantity order.
3.Q: What is the lead time?
A: With in7-20days after the receipt of payment or L/C.
4.Q: Payment term?
A: 100&TT in advance, 30% TT deposit before shipment balance
against copy of B/L, L/C at sight.
5.Q: How to solve the quality problems after sales?
A: Take photos of the problems and send to us. After we confirm the
problems, within three days, we will make a satisfying solution for you.
More information please contact us. It's our pleasure to solve the question for you.
Attention
1. The product cannot be exposed in the open air and should be
stored in dry condition with air-proof package
2. The product should be regenerated after a certain period of
adsorption. The appropriate regenerated temperature would be better
below 350°C.

|
